OPB806

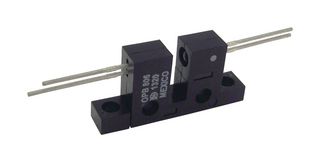

PHOTO INTERRUPTER, THROUGH BEAM, 3.175MM
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTT ELECTRONICS / OPTEK TECHNOLOGY
Manufacturer Part NoOPB806
Order Code1497915
Technical Datasheet
116 total stock globally
Need more?
116 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $6.540 ($7.521) |
Price for:Each
Minimum: 1
Multiple: 1
$6.54 ($7.52 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTT ELECTRONICS / OPTEK TECHNOLOGY
Manufacturer Part NoOPB806
Order Code1497915
Technical Datasheet
Sensing MethodThrough Beam
Sensing Distance / Slot Width3.175mm
Supply Voltage Min-
Gap Width3.175mm
Supply Voltage Max-
Aperture Width1.52mm
Sensor Case / PackageModule
Forward Current If20mA
Reverse Voltage Vr2V
Collector Emitter Voltage Max30V
Collector Current IC Max-
Forward Voltage1.7V
Sensor Output TypePhototransistor
IP Rating-
Sensor MountingPanel, Through Hole
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Qualification-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The OPB806 is a Slotted Optical Switch that consists of an infrared emitting diode (LED) and a NPN silicon phototransistor, mounted on opposite sides of a wide slot. The OPB806 has two sets of mounting tabs allowing Base or Side mounting of the device. The LED and phototransistor leads project from each side of the housing on 0.050” (1.27mm) centres. Phototransistor switching takes place whenever an opaque object passes through the slot.
