7M-27.120MEEQ-T
Crystal, 7M, 27.12 MHz, 10 ppm, 10 ppm, 10 pF
1,274 total stock globally
Need more?
1,274 Delivery in 3-5 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $2.030 | $2.03 |
Cut Tape & Re-Reel
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.030 ($2.3345) |
| 10+ | $1.760 ($2.024) |
| 25+ | $1.600 ($1.840) |
| 50+ | $1.560 ($1.794) |
| 100+ | $1.530 ($1.7595) |
| 500+ | $1.390 ($1.5985) |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TXC |
|---|---|
| Manufacturer Part No | 7M-27.120MEEQ-TCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | Re-Reel2101321RL Cut Tape2101321 |
| Product Range | 7M |
| Technical Datasheet | |
| Product Range | 7M |
| Frequency Nom | 27.12MHz |
| Crystal Frequency | 27.12MHz |
| Frequency Tolerance + / - | 10ppm |
| Frequency Stability + / - | 10ppm |
| Load Capacitance | 10pF |
| Crystal Case / Package | SMD, 3.2mm x 2.5mm |
| No. of Pins | 4Pins |
| Crystal Mounting | SMD |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview

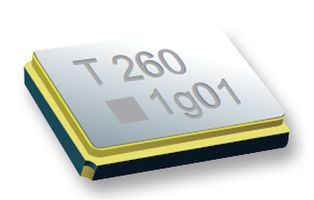

The 7M-27.120MEEQ-T is a 3.2 x 2.5 x 0.7mm SMD Seam Sealing Crystal with high precision and high frequency stability.
- Extremely Small SMD Type Crystal Unit
- Extremely Good for Reducing EMI Effect
- Ageing ±3ppm Per Year Max
Applications
Portable Devices, Consumer Electronics, Communications & Networking, Wireless
Technical Specifications
| Product Range | 7M |
|---|---|
| Crystal Frequency | 27.12MHz |
| Frequency Stability + / - | 10ppm |
| Crystal Case / Package | SMD, 3.2mm x 2.5mm |
| Crystal Mounting | SMD |
| Operating Temperature Max | 85°C |
| Frequency Nom | 27.12MHz |
|---|---|
| Frequency Tolerance + / - | 10ppm |
| Load Capacitance | 10pF |
| No. of Pins | 4Pins |
| Operating Temperature Min | -40°C |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85416000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00004 |
