268-001C

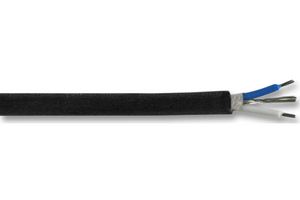

Pro Grade Classic XKE 1-Pair Install Cable, Black, 100m (L)
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VAN DAMME |
|---|---|
| Manufacturer Part No | 268-001CCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3371873 |
| Product Range | Pro Grade Classic XKE 1 pair Series |
| Your Part Number | |
| Technical Datasheet |
30 total stock globally
Need more?
30 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $249.800 ($287.270) |
| 3+ | $233.760 ($268.824) |
Price for:Each
Minimum: 1
Multiple: 1
$249.80 ($287.27 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VAN DAMME |
|---|---|
| Manufacturer Part No | 268-001CCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3371873 |
| Product Range | Pro Grade Classic XKE 1 pair Series |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Cores | 2Core |
| Wire Gauge | 24AWG |
| Conductor Area CSA | 0.2mm² |
| Reel Length (Imperial) | 328.08ft |
| Reel Length (Metric) | 100m |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 0.2mm |
| Conductor Material | Silver Plated Copper |
| Jacket Material | PVC |
| External Diameter | 3.5mm |
| Voltage Rating | 250VAC |
| Product Range | Pro Grade Classic XKE 1 pair Series |
| SVHC | To Be Advised |
Product Overview
Van Damme Pro Grade Classic XKE 1-pair install cable is a foil screened twisted pair for installation and rack wiring. Tough, flexible and very easy to prepare as the foil screen is bonded to the outer jacket, this cable type is also useful for 'bodge leads', adaptor cables and multipin breakouts where individual tails need to be colour identified or are to be permanently installed.
- Internal rack and patch panel wiring looms
- Installations not requiring LSZH jacket materials
- Adaptor leads and multipin breakouts
- Foil screen bonded to the outer jacket for a one strip operation when preparing
- 24AWG tinned drain wire in close contact to the aluminium/polyester FEF screen
- Combination of silver plated and plain ultra-pure oxygen free copper conductors for unsurpassed sound quality
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 24AWG |
| Reel Length (Imperial) | 328.08ft |
| Jacket Colour | Black |
| Conductor Material | Silver Plated Copper |
| External Diameter | 3.5mm |
| Product Range | Pro Grade Classic XKE 1 pair Series |
| No. of Cores | 2Core |
|---|---|
| Conductor Area CSA | 0.2mm² |
| Reel Length (Metric) | 100m |
| No. of Max Strands x Strand Size | 7 x 0.2mm |
| Jacket Material | PVC |
| Voltage Rating | 250VAC |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 2.101 |
