268-450-000
Networking Cable, TourCat Flexible Data/Control Patch, Per Metre, Screened, Cat5e, 26 AWG, 0.14 mm²

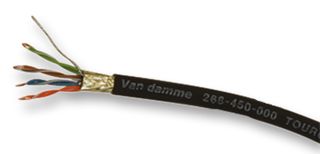

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VAN DAMME |
|---|---|
| Manufacturer Part No | 268-450-000Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | METRE 1972549 REEL 1971823 |
| Product Range | TourCat Series |
| Your Part Number | |
| Technical Datasheet |
421 total stock globally
1 more incoming. You can reserve stock now
421 Delivery in 3-5 Business Days(UK stock)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VAN DAMME |
|---|---|
| Manufacturer Part No | 268-450-000Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | METRE 1972549 REEL 1971823 |
| Product Range | TourCat Series |
| Technical Datasheet | |
| Cable Shielding | Screened |
| LAN Category | Cat5e |
| Wire Gauge | 26AWG |
| Conductor Area CSA | 0.14mm² |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| No. of Pairs | 4 Pair |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 0.16mm |
| Voltage Rating | - |
| Jacket Material | PVC |
| Conductor Material | Copper |
| External Diameter | 6mm |
| Product Range | TourCat Series |
Product Overview
The 268-450-000 is a 4 twisted paired screened TourCat Cat5e Networking Patch Cable from Van Damme. Features flexible stranded 7 x 0.16mm (0.14mm2) bare oxygen-free copper conductors, aluminium/polyester foil screen and black flexible PVC composite jacket of 6mm diameter.
- CPR: Not Yet Qualified
- TourCat Cat5e flexible patch cable
- For Ethernet and Ethernet based protocols
- 135Ω/km Conductor resistance
- <gt/>5000MΩ/km Insulation resistance
- 1500VDC/minute Dielectric test
- 55pF/m Core to core capacitance
- Bend radius 15 x overall diameter
- Cut to desired length in multiples of 1 metre
Applications
Communications & Networking, Consumer Electronics, Audio
Notes
Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 26AWG |
| Reel Length (Imperial) | - |
| No. of Pairs | 4 Pair |
| No. of Max Strands x Strand Size | 7 x 0.16mm |
| Jacket Material | PVC |
| External Diameter | 6mm |
| LAN Category | Cat5e |
|---|---|
| Conductor Area CSA | 0.14mm² |
| Reel Length (Metric) | - |
| Jacket Colour | Black |
| Voltage Rating | - |
| Conductor Material | Copper |
| Product Range | TourCat Series |
Technical Docs (1)
Alternatives for 268-450-000
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .037 |
