278-475-000

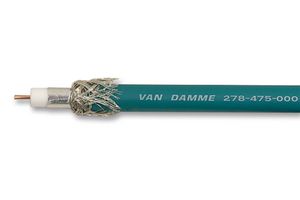

Coaxial Cable, RG11, 10.2 mm, 75 ohm
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VAN DAMME |
|---|---|
| Manufacturer Part No | 278-475-000Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | METRE 2425044 REEL 2356830 |
| Product Range | HD Vision Series |
| Your Part Number | |
| Technical Datasheet |
68 total stock globally
Need more?
68 Delivery in 3-5 Business Days(UK stock)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VAN DAMME |
|---|---|
| Manufacturer Part No | 278-475-000Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | METRE 2425044 REEL 2356830 |
| Product Range | HD Vision Series |
| Technical Datasheet | |
| Coaxial Cable Type | RG11 |
| Conductor Area CSA | - |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| External Diameter | 10.2mm |
| Impedance | 75ohm |
| Jacket Colour | Blue |
| Jacket Material | LSZH |
| No. of Max Strands x Strand Size | Solid |
| Product Range | HD Vision Series |
| Wire Gauge | - |
| Conductor Material | Copper |
| SVHC | To Be Advised |
Product Overview
The 278-475-000 is a Coaxial Cable with bare ultra pure oxygen-free copper conductor and a gas-injected foam skin polyethylene dielectric.
- CPR: Not Yet Qualified
- <lt/>8.2Ω/km Conductor resistance
- 4.9Ω/km Shield resistance
- <gt/>5000MΩ/km Insulation resistance
- 1000VDC (1 minute OK) Voltage test
- 52pF/m Capacitance
- 85% Velocity of propagation
Applications
Signal Processing
Notes
Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Coaxial Cable Type | RG11 |
|---|---|
| Reel Length (Imperial) | - |
| External Diameter | 10.2mm |
| Jacket Colour | Blue |
| No. of Max Strands x Strand Size | Solid |
| Wire Gauge | - |
| SVHC | To Be Advised |
| Conductor Area CSA | - |
|---|---|
| Reel Length (Metric) | - |
| Impedance | 75ohm |
| Jacket Material | LSZH |
| Product Range | HD Vision Series |
| Conductor Material | Copper |
Technical Docs (1)
Alternatives for 278-475-000
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .1 |
