VS-1N1186A
Diode Module, 200 V, 40 A, 1.3 V, Single, DO-5, 2 Pins

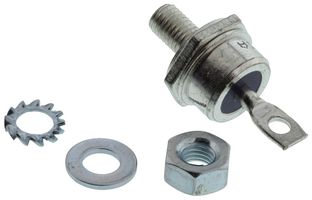

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | VS-1N1186ACopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2547250 |
| Your Part Number | |
| Technical Datasheet |
90 total stock globally
Need more?
90 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $40.580 ($46.667) |
| 5+ | $33.450 ($38.4675) |
| 10+ | $26.320 ($30.268) |
| 50+ | $25.790 ($29.6585) |
| 100+ | $25.270 ($29.0605) |
| 250+ | $24.740 ($28.451) |
Price for:Each
Minimum: 1
Multiple: 1
$40.58 ($46.67 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | VS-1N1186ACopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2547250 |
| Technical Datasheet | |
| Repetitive Peak Reverse Voltage | 200V |
| Average Forward Current | 40A |
| Forward Voltage Max | 1.3V |
| Diode Module Configuration | Single |
| Diode Case Style | DO-5 |
| No. of Pins | 2Pins |
| Operating Temperature Max | 200°C |
| Forward Surge Current | 800A |
| Diode Mounting | Stud |
| Product Range | - |
| SVHC | Lead (08-Jul-2021) |
Product Overview
The VS-1N1186A is a Power Silicon Rectifier Diode offers good surge current capability up to 1000A. It also offers 200V maximum repetitive peak reverse voltage and direct reverse voltage.
- Low leakage current
- -65 to 200°C Junction operating temperature range
Applications
Power Management, Industrial
Technical Specifications
| Repetitive Peak Reverse Voltage | 200V |
|---|---|
| Forward Voltage Max | 1.3V |
| Diode Case Style | DO-5 |
| Operating Temperature Max | 200°C |
| Diode Mounting | Stud |
| SVHC | Lead (08-Jul-2021) |
| Average Forward Current | 40A |
|---|---|
| Diode Module Configuration | Single |
| No. of Pins | 2Pins |
| Forward Surge Current | 800A |
| Product Range | - |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Austria Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85411000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (08-Jul-2021) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .021092 |
