TA327401

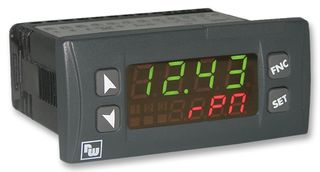

Tachometer, Rotating Direction Indication, 4 Digits, 230 Vac/dc, 32 x 74 mm

TA327401 - Tachometer, Rotating Direction Indication, 4 Digits, 230 Vac/dc, 32 x 74 mm

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
TA327401
Order Code:
2365007
Technical Datasheet:
TA327401   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4

:
10.2mm

:
24V

:
230V

:
28.5mm

:
70.5mm

:
0°C

:
40°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The TA327401 is a 4-digit Tachometer with rotating direction indication in format 32 x 74mm. It is made of black and robust plastic case, PC ABS self-extinguishing housing. The compact small tachometer allows to read the frequency (maximum 100kHz) of a signal from single or double (bidirectional encoder) input. 2 universal digital inputs are available (NPN/PNP/contact) for external commands like output activation or Hold/Stop current visualization and one input it is also analogue in order to allow set-point modification by external potentiometers. Due to the two different modes and the indication of the rotating direction, the tachometer is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.
  • Universal AC-to-DC power supply
  • Easy programming by front keys or software
  • Screw terminal connection
  • 2-line LED display
  • Input frequency up to 100kHz
  • UL94V-0 Flammability rating

Applications

Industrial, Metering

Available for back order

More stock available to supplier lead times which is approximately 4/01/21

Notify me when back in stock

$195.40 ( $224.71  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $195.40 ($224.71)
