VZ484801

Rate Meter, Counter, 4 Digits, 24 to 230 Vac/dc, 48 x 48 mm

VZ484801 - Rate Meter, Counter, 4 Digits, 24 to 230 Vac/dc, 48 x 48 mm

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
VZ484801
Order Code:
2365009
Technical Datasheet:
VZ484801   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4

:
10.2mm

:
24V

:
230V

:
46mm

:
46mm

:
0°C

:
40°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

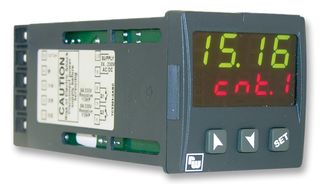

The VZ484801 is a 4-digit Preset counter/Rate meter made of black and robust plastic case housing. The compact preset counter can be used as preset counter and also as a rate meter. Three universal digital inputs are available (NPN/PNP/TTL) can be used with the most common pulse sensors. With the internal quadrature functionality or the external wiring of the user inputs a bidirectional counting could be relayed and displaced. One user input is also analogue in order to allow set-point modification by an external potentiometer. Due to the two different modes and the scaling features, the counter is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.
  • Universal AC-to-DC power supply
  • Easy programming by front keys or software
  • Two relay outputs
  • 2-line LED display
  • Input frequency up to 100kHz

Applications

Industrial, Clock & Timing, Metering

Available for back order

More stock available to supplier lead times which is approximately 4/01/21
