ZD327401

Counter, Preset, 4 Digits, 24 to 230 Vac/dc, 32 x 74 mm

ZD327401 - Counter, Preset, 4 Digits, 24 to 230 Vac/dc, 32 x 74 mm

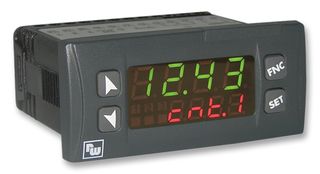

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
ZD327401
Order Code:
2365006
Technical Datasheet:
ZD327401   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4

:
10.2mm

:
24V

:
230V

:
28.5mm

:
70.5mm

:
0°C

:
40°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The ZD327401 is a 4-digit Counter/Preset Counter made of black and robust plastic case, PC ABS self-extinguishing housing. The compact small counter can be set in two different modes of single or double counter, all with independent setting. Three universal digital inputs are available (NPN/PNP/contact) can be used for bidirectional encoders reading, UP/DOWN counter function, LOCK/HOLD to lock or hold current visualization. One input is also analogue in order to allow set-point modification by an external potentiometer. Due to the two different modes and the scaling features, the counter is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.
  • Universal AC-to-DC power supply
  • Easy programming by front keys or software
  • Two relay outputs
  • 2-line LED display
  • Input frequency up to 100kHz
  • UL94V-0 Flammability rating

Applications

Industrial, Clock & Timing, Metering
