2061-602/998-404
Wire-To-Board Terminal Block, 6 mm, 2 Ways, 20 AWG, 16 AWG, 1.5 mm², Push In
1,522 total stock globally
2,800 more incoming. You can reserve stock now
1522 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $5.760 ($6.624) |
| 10+ | $4.120 ($4.738) |
| 25+ | $3.600 ($4.140) |
| 50+ | $3.260 ($3.749) |
| 100+ | $2.990 ($3.4385) |
| 250+ | $2.700 ($3.105) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$5.76 ($6.62 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No2061-602/998-404
Order Code2428576
Product Range2061
Also Known AsGTIN UPC EAN: 4050821859802
Technical Datasheet
Pitch Spacing6mm
No. of Positions2Ways
Wire Size AWG Min20AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.5mm²
Wire Connection MethodPush In
Rated Current17.5A
Rated Voltage320V
Block OrientationSurface Mount Right Angle
Product Range2061
SVHCNo SVHC (21-Jan-2025)
Product Overview

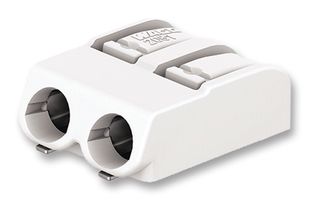

The 2061-602/998-404 from Wago is a surface mount, 2 pole terminal block with push button for wire insertion. This terminal block comes with 6mm pin spacing and suitable for wire size ranging from 20AWG to 16AWG.
- White colour terminal block
- Polyphtalamide glass fibre insulating material
- Copper alloy contact, right angle wire orientation
- Tin plating
- Weight of 1.456g
- Pollution degree of 2
- UL94 V-0 flammability rating
- Dimension of terminal block is 15.8mm x 11.7mm x 5.6mm (L x W x H)
- IEC/EN 60664-1 and UL 1977 approved
- Temperature range from -60°C to 105°C
Applications
Industrial
Technical Specifications
Pitch Spacing
6mm
Wire Size AWG Min
20AWG
Conductor Area CSA
1.5mm²
Rated Current
17.5A
Block Orientation
Surface Mount Right Angle
SVHC
No SVHC (21-Jan-2025)
No. of Positions
2Ways
Wire Size AWG Max
16AWG
Wire Connection Method
Push In
Rated Voltage
320V
Product Range
2061
Alternatives for 2061-602/998-404
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001456
