692622030100

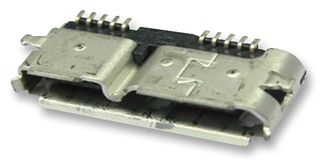

USB Connector, Micro USB Type B, USB 3.0, Receptacle, 10 Ways, Surface Mount, Right Angle
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No692622030100
Order Code1861260
Product RangeWR-COM
Technical Datasheet
503 total stock globally
Need more?
503 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.910 ($5.6465) |
| 15+ | $4.770 ($5.4855) |
| 50+ | $4.660 ($5.359) |
| 100+ | $4.550 ($5.2325) |
| 250+ | $4.440 ($5.106) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$4.91 ($5.65 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No692622030100
Order Code1861260
Product RangeWR-COM
Technical Datasheet
USB Connector TypeMicro USB Type B
USB StandardUSB 3.0
No. of Positions10Ways
Connector MountingSurface Mount
OrientationRight Angle
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeWR-COM
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 692622030100 from Wurth Elektronik is a surface mount, WR-COM micro USB 3.0 type B socket with right angle mounting. USB 3.0 interface supports data transfer rate of up to 5Gbit/s.
- Black colour LCP insulator
- Rated current is 1.8A pin 1 and pin 4, 0.25A other pins A
- Rated voltage is 30VAC
- Maximum contact resistance is 30mohm
- Phosphor bronze with gold plated contacts
- Steel tin plated shell
- Operating temperature range from -20°C to 85°C
- UL / cULus E323964 certified
- Maximum insertion force is 35N
- Minimum extraction force is 10N
Applications
Industrial, Portable Devices, Communications & Networking
Technical Specifications
USB Connector Type
Micro USB Type B
Gender
Receptacle
Connector Mounting
Surface Mount
Contact Material
Phosphor Bronze
Product Range
WR-COM
USB Standard
USB 3.0
No. of Positions
10Ways
Orientation
Right Angle
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001134
