7427932
Ferrite Bead, 1812 [4532 Metric], 98 ohm, 18 A, WE-PBF Series, 900 µohm, ± 25%

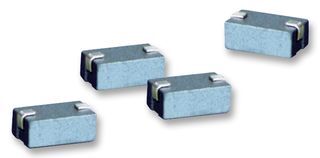

Image is for illustrative purposes only. Please refer to product description.
![WURTH ELEKTRONIK 7427932 Ferrite Bead, 1812 [4532 Metric], 98 ohm, 18 A, WE-PBF Series, 900 µohm, ± 25%](https://nz.element14.com/productimages/standard/en_GB/1890597-40.jpg)
| Manufacturer | WURTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | 7427932Copy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | Re-Reel1890599RL Cut Tape1890599 |
| Product Range | WE-PBF Series |
| Your Part Number | |
| Technical Datasheet |
2,510 total stock globally
1,000 more incoming. You can reserve stock now
2,510 Delivery in 3-5 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $1.200 | $1.20 |
Cut Tape & Re-Reel
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1.200 ($1.380) |
| 10+ | $1.170 ($1.3455) |
| 50+ | $1.120 ($1.288) |
| 100+ | $1.070 ($1.2305) |
| 200+ | $0.998 ($1.1477) |
| 500+ | $0.925 ($1.0638) |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WURTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | 7427932Copy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | Re-Reel1890599RL Cut Tape1890599 |
| Product Range | WE-PBF Series |
| Technical Datasheet | |
| Ferrite Bead Case / Package | 1812 [4532 Metric] |
| Impedance | 98ohm |
| DC Current Rating | 18A |
| Product Range | WE-PBF Series |
| DC Resistance Max | 900µohm |
| Impedance Tolerance | ± 25% |
| Product Length | 7.8mm |
| Product Width | 4.75mm |
| Product Height | 3mm |
| Ferrite Mounting | SMD |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 7427932 is a flat wire high current SMD Ferrite Bead suitable for applications with high current up to 6A and voltage supply for high load current. The WE-PBF series glued version ferrite bead is specially designed for applications with permanent vibrations.
- Operating temperature range -55°C to 125°C
- Glued version: High mechanical stability
- Suitable for applications with high currents up to 6 A
- Flat wire
Applications
Industrial, Power Management, Consumer Electronics
Warnings
Cleaning agents that are used to clean the customer application might damage or change the characteristics of the component, body, pins or termination.
Technical Specifications
| Ferrite Bead Case / Package | 1812 [4532 Metric] |
|---|---|
| DC Current Rating | 18A |
| DC Resistance Max | 900µohm |
| Product Length | 7.8mm |
| Product Height | 3mm |
| Operating Temperature Min | -55°C |
| Qualification | - |
| Impedance | 98ohm |
|---|---|
| Product Range | WE-PBF Series |
| Impedance Tolerance | ± 25% |
| Product Width | 4.75mm |
| Ferrite Mounting | SMD |
| Operating Temperature Max | 125°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85051190 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000509 |
