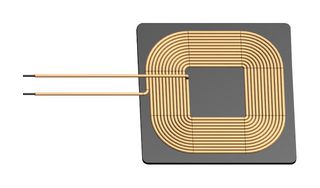

Charging Coil, AWCCA Series, 10 µH, ± 10%, 0.055 ohm, 1 Coil, 1 Layer
Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoAWCCA-TX535315-101Copy
Manufacturer Standard Lead Time29 weeks
Order Code3224274
Product RangeAWCCA Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 29 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $19.490 ($22.4135) |
| 10+ | $16.060 ($18.469) |
| 25+ | $14.860 ($17.089) |
| 50+ | $13.300 ($15.295) |
| 100+ | $11.700 ($13.455) |
| 300+ | $9.930 ($11.4195) |
Price for:Each
Minimum: 1
Multiple: 1
$19.49 ($22.41 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerABRACON
Manufacturer Part NoAWCCA-TX535315-101Copy
Manufacturer Standard Lead Time29 weeks
Order Code3224274
Product RangeAWCCA Series
Technical Datasheet
Product RangeAWCCA Series
Inductance10µH
Inductance Tolerance± 10%
DC Resistance Max0.055ohm
No. of Coils1 Coil
No. of Layers1 Layer
Saturation Current (Isat)-
Self Resonant Frequency-
Quality Factor135@125kHz
AC Current Rating-
Product Length53mm
Product Width53mm
Product Height4.5mm
Inductor MountingBoard Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Product Range
AWCCA Series
Inductance Tolerance
± 10%
No. of Coils
1 Coil
Saturation Current (Isat)
-
Quality Factor
135@125kHz
Product Length
53mm
Product Height
4.5mm
Operating Temperature Min
-40°C
SVHC
No SVHC (04-Feb-2026)
Inductance
10µH
DC Resistance Max
0.055ohm
No. of Layers
1 Layer
Self Resonant Frequency
-
AC Current Rating
-
Product Width
53mm
Inductor Mounting
Board Mount
Operating Temperature Max
85°C
