P9240AWGA-AU

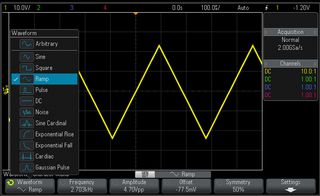

P9240AWGA-AU is a built-in 20MHz function/AWG waveform generator software for P924xA Series oscilloscopes. The WaveGen provides standard stimulus output waveforms to your device under test as well as user-definable frequencies, amplitudes, offset and pulse widths and arbitrary waveform capability. The WaveGen output is routed to a MMCX connector on the front panel of the oscilloscope. Use the built-in waveform editor to create custom waveforms to output on the oscilloscope’s WaveGen. It is also possible to capture a known good or ‘golden’ waveform on a scope channel and then save that to the ARB so you can generate it to stimulate your system under test.

• 10bits, 100MSa/s, 8kpts, DDS technology
• Store oscilloscope waveforms directly into WaveGen AWG memory with one button press
• Create/edit AWG waveforms using the built-in editor
• Add noise and glitches
• Change amplitude, frequency, and offset
• Quickly test the margins of your designs using real-world signals
• Internal memory and USB thumb drive save/recall
