760308101141

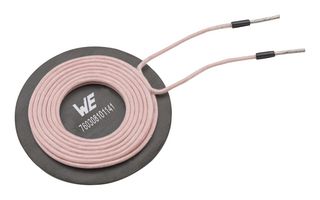

Charging Coil, WE-WPCC Series, 10 µH, ± 10%, 0.03 ohm, 1 Coil, 2 Layers
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No760308101141
Order Code2842208
Product RangeWE-WPCC Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 24 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $29.490 ($33.9135) |
| 5+ | $27.570 ($31.7055) |
| 10+ | $25.650 ($29.4975) |
| 20+ | $24.930 ($28.6695) |
| 40+ | $24.200 ($27.830) |
| 84+ | $23.480 ($27.002) |
Price for:Each
Minimum: 1
Multiple: 1
$29.49 ($33.91 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No760308101141
Order Code2842208
Product RangeWE-WPCC Series
Technical Datasheet
Product RangeWE-WPCC Series
Inductance10µH
Inductance Tolerance± 10%
DC Resistance Max0.03ohm
No. of Coils1 Coil
No. of Layers2 Layers
Saturation Current (Isat)-
Self Resonant Frequency11MHz
Quality Factor220@125kHz
AC Current Rating-
Product Length-
Product Width-
Product Height5mm
Inductor MountingBoard Mount
Operating Temperature Min-
Operating Temperature Max-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Product Range
WE-WPCC Series
Inductance Tolerance
± 10%
No. of Coils
1 Coil
Saturation Current (Isat)
-
Quality Factor
220@125kHz
Product Length
-
Product Height
5mm
Operating Temperature Min
-
SVHC
No SVHC (21-Jan-2025)
Inductance
10µH
DC Resistance Max
0.03ohm
No. of Layers
2 Layers
Self Resonant Frequency
11MHz
AC Current Rating
-
Product Width
-
Inductor Mounting
Board Mount
Operating Temperature Max
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.035333
