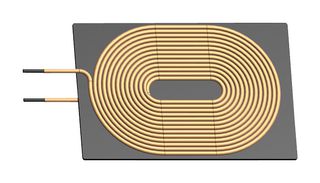

Charging Coil, AWCCA Series, 6.3 µH, ± 10%, 0.08 ohm, 1 Coil, 1 Layer
Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoAWCCA-TX523517-102
Order Code3224273
Product RangeAWCCA Series
Technical Datasheet
160 total stock globally
Need more?
160 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $15.010 ($17.2615) |
| 10+ | $10.350 ($11.9025) |
| 25+ | $9.710 ($11.1665) |
| 50+ | $9.060 ($10.419) |
| 100+ | $8.420 ($9.683) |
| 300+ | $7.290 ($8.3835) |
Price for:Each
Minimum: 1
Multiple: 1
$15.01 ($17.26 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerABRACON
Manufacturer Part NoAWCCA-TX523517-102
Order Code3224273
Product RangeAWCCA Series
Technical Datasheet
Product RangeAWCCA Series
Inductance6.3µH
Inductance Tolerance± 10%
DC Resistance Max0.08ohm
No. of Coils1 Coil
No. of Layers1 Layer
Saturation Current (Isat)-
Self Resonant Frequency-
Quality Factor60@100kHz
AC Current Rating-
Product Length35mm
Product Width52mm
Product Height1.76mm
Inductor MountingBoard Mount
Operating Temperature Min-40°C
Operating Temperature Max120°C
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Product Range
AWCCA Series
Inductance Tolerance
± 10%
No. of Coils
1 Coil
Saturation Current (Isat)
-
Quality Factor
60@100kHz
Product Length
35mm
Product Height
1.76mm
Operating Temperature Min
-40°C
SVHC
No SVHC (25-Jun-2025)
Inductance
6.3µH
DC Resistance Max
0.08ohm
No. of Layers
1 Layer
Self Resonant Frequency
-
AC Current Rating
-
Product Width
52mm
Inductor Mounting
Board Mount
Operating Temperature Max
120°C
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
